Model No : KFL17238

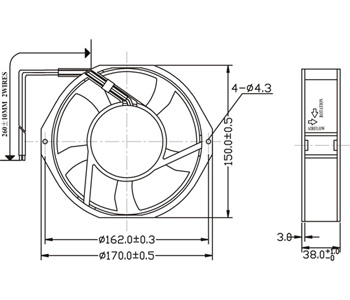

SIZE : 172×150×38mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller, UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2500V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing-30℃ to + 75℃
Sleeve Bearing-10℃ to + 70℃
WEIGHT : 0.76Kg
PACKAGE : 20pcs/carton
Specification:
规格型号 Model No.
| 轴承 Bearing
| 电压 (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率 (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A | |
(m3/min) | (CFM) | |||||||||
KFL17238HA1 | Ball | 110/120 | 50/60 | 0.24/0.27 | 26/32 | 2500/3000 | 5.37/6.65 | 180/220 | 16.00/17.78 | 54/58 |
KFL17238HA1 | Sleeve | 110/120 | 50/60 | 0.24/0.27 | 26/32 | 2500/3000 | 5.37/6.65 | 180/220 | 16.00/17.78 | 54/58 |
KFL17238HA2 | Ball | 220/240 | 50/60 | 0.14/0.16 | 23/28 | 2400/2800 | 5.37/6.65 | 180/220 | 16.00/17.78 | 54/58 |
KFL17238HA2 | Sleeve | 220/240 | 50/60 | 0.14/0.16 | 23/28 | 2400/2800 | 5.37/6.65 | 180/220 | 16.00/17.78 | 54/58 |
 |  |
