Model No : KFL22060

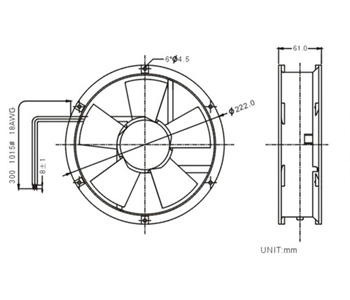

SIZE : Φ220×60mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller, UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2500V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing-30℃ to + 75℃
Sleeve BearingN/A
WEIGHT : 1.6Kg
PACKAGE : 10pcs/carton
Specification :
规格型号 Model No.
| 轴承 Bearing
| 电压 (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率 (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A | |
(m3/min) | (CFM) | |||||||||
KFL22060HA1 | Ball | 110/120 | 50/60 | 0.76/0.77 | 57/58 | 2600 | 11.6 | 400 | 25.4 | 56 |
KFL22060HA2 | Ball | 220/240 | 50/60 | 0.37/0.38 | 57/58 | 2600 | 11.6 | 400 | 25.4 | 56 |
KFL22060HA3 | Ball | 380 | 50 | 0.2 | 55 | 2600 | 11.6 | 400 | 25.4 | 56 |
 |  |
