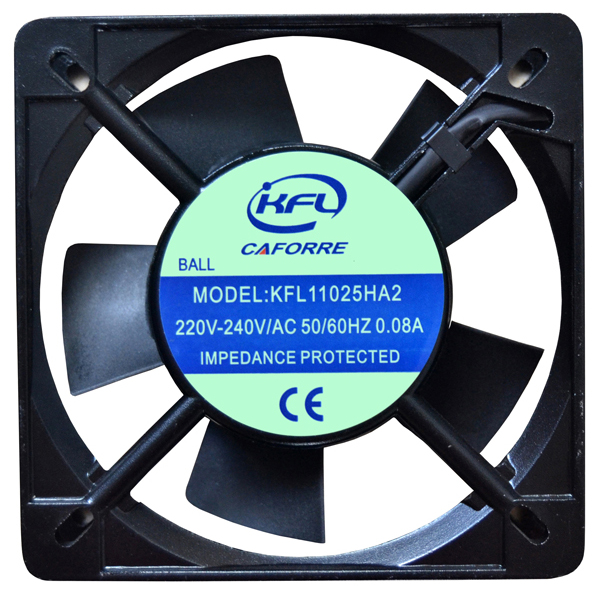

Model No : KFL11025

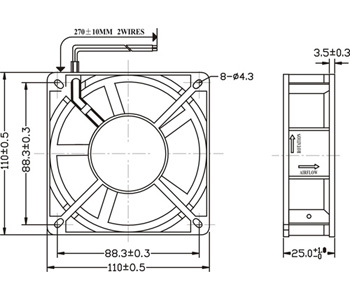

SIZE : 110×110×25mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller, UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2200V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing-30℃ to + 75℃
Sleeve Bearing-10℃ to + 70℃
WEIGHT : 0.31Kg
PACKAGE : 60pcs/carton
Specification:
规格型号 Model No.
| 轴承 Bearing
| 电压 (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率 (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A | |
(m3/min) | (CFM) | |||||||||
KFL11025HA1 | Ball | 115 | 50/60 | 0.19/0.18 | 19/18 | 2200/2400 | 1.70/2.01 | 60/71 | 3.56/4.06 | 36/38 |
KFL11025HA1 | Sleeve | 115 | 50/60 | 0.19/0.18 | 19/18 | 2200/2400 | 1.70/2.01 | 60/71 | 3.56/4.06 | 36/38 |
KFL11025HA2 | Ball | 220/240 | 50/60 | 0.09/0.09 | 19/18 | 2200/2400 | 1.70/2.01 | 60/71 | 3.56/4.06 | 36/38 |
KFL11025HA2 | Sleeve | 220/240 | 50/60 | 0.09/0.09 | 19/18 | 2200/2400 | 1.70/2.01 | 60/71 | 3.56/4.06 | 36/38 |
 |  |
