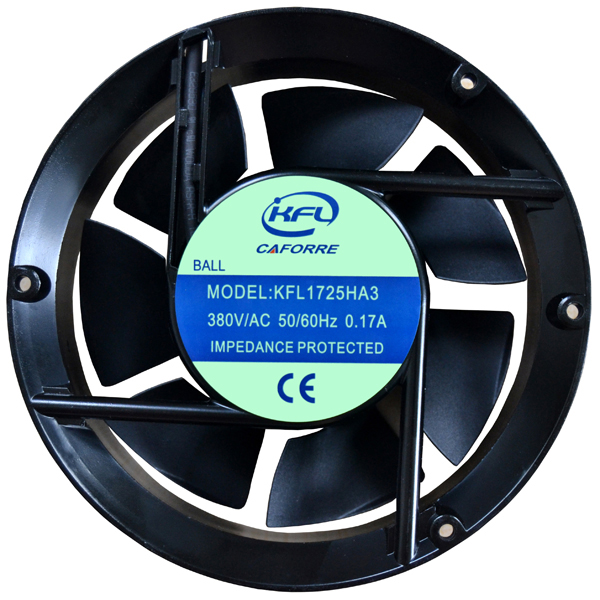

Model No : KFL1725 圆形
SIZE : Φ172×51 mm
CONSTRUCTION ：
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller, UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2500V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing-30℃ to + 75℃
Sleeve Bearing-10℃ to + 70℃
WEIGHT : 0.9Kg
PACKAGE : 20pcs/carton
Specification:
规格型号 Model No.
| 轴承 Bearing
| 电压 (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率 (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A | |
(m3/min) | (CFM) | |||||||||
KFL1725HA1 | Ball | 110/120 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
KFL1725HA1 | Sleeve | 110/120 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
KFL1725HA2 | Ball | 220/240 | 50/60 | 0.25/0.22 | 38/35 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
KFL1725HA2 | Sleeve | 220/240 | 50/60 | 0.25/0.22 | 38/35 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
KFL1725HA3 | Ball | 380 | 50 | 0.11 | 38 | 2600 | 5.37 | 190 | 16 | 45 |
KFL1725HA3 | Sleeve | 380 | 50 | 0.11 | 38 | 2600 | 5.37 | 190 | 16 | 45 |
 |  |
