Model No : KFL13538

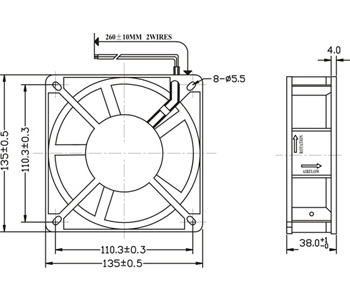

SIZE : 135×135×38mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller, UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2200V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing-30℃ to + 75℃
Sleeve Bearing-10℃ to + 70℃
WEIGHT : 0.55Kg
PACKAGE : 40pcs/carton

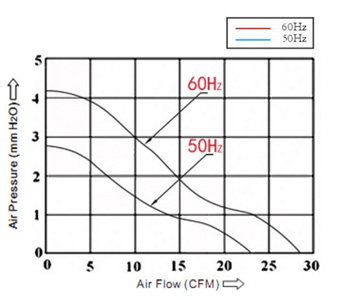

Specification :
规格型号 Model No.
| 轴承 Bearing
| 电压 (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率 (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A | |
(m3/min) | (CFM) | |||||||||
KFL13538HA1 | Ball | 110/120 | 50/60 | 0.28/0.2 | 23/19 | 2650/2950 | 3.35/4.12 | 150/170 | 6.35/7.62 | 40/45 |
KFL13538HA1 | Sleeve | 110/120 | 50/60 | 0.28/0.12 | 23/19 | 2650/2950 | 3.35/4.12 | 150/170 | 6.35/7.62 | 40/45 |
KFL13538HA2 | Ball | 220/240 | 50/60 | 0.16/0.13 | 23/19 | 2500/2800 | 3.35/4.12 | 150/170 | 8.38/9.65 | 42/47 |
KFL13538HA2 | Sleeve | 220/240 | 50/60 | 0.16/0.13 | 23/19 | 2500/2800 | 3.35/4.12 | 150/170 | 8.38/9.65 | 42/47 |
KFL13538HA3 | Ball | 380 | 50 | 0.08 | 19 | 2600 | 3.35 | 150 | 6.35 | 40 |
KFL13538HA3 | Sleeve | 380 | 50 | 0.08 | 19 | 2600 | 3.35 | 150 | 6.35 | 40 |
 |  |
