Model No：KFL12032

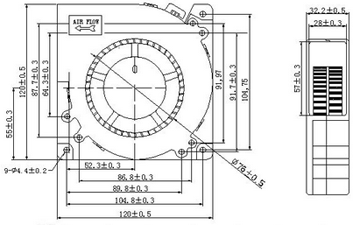

Measure：120*120*32 mm
Feature：
．Housing: enviromental protection and fireproof PBT（UL94V-0）.
．Impeller: enviromental protection and fireproof PBT（UL94V-0）.
．Enameled copper wire: BA class insulation,withstand high temperature 155℃.
．Bearing: high-precision,long-life and low noise ball bearing.
．Motor: Impedance protection.
Operating temperature :
ball bearing:-30℃ to + 75℃ 30%-85% RH
sleeve bearing:-10℃ to + 70℃ 30%-85% RH
Specifications :
Model No. | Voltage | Operating Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||
V | V | A | W | RPM | M³/Min | CFM | mmH2O | inH2O | dB-A | |
KFL1203212L | 12 | 6.0~13.5 | 0.60 | 7.2 | 2500 | 0.71 | 25.11 | 20.4 | 0.803 | 50 |
KFL1203224L | 24 | 18~26.5 | 0.25 | 6.0 | ||||||
KFL1203212M | 12 | 6.0~13.5 | 0.80 | 9.6 | 2800 | 0.74 | 26.13 | 25.7 | 1.012 | 53 |
KFL1203224M | 24 | 18~26.5 | 0.35 | 8.4 | ||||||
KFL1203248M | 48 | 36~54 | 0.25 | 12.0 | ||||||
KFL1203212H | 12 | 6.0~13.5 | 1.00 | 12.0 | 3000 | 0.77 | 27.32 | 28.7 | 1.130 | 56 |
KFL1203224H | 24 | 18~26.5 | 0.50 | 12.0 | ||||||
KFL1203248H | 48 | 36~54 | 0.30 | 14.4 | ||||||
KFL1203212L-HH | 12 | 6.0~13.5 | 1.46 | 17.5 | 3300 | 0.82 | 29.02 | 35.4 | 1.394 | 60 |
KFL1203224L-HH | 24 | 18~26.5 | 0.65 | 45.6 | ||||||
KFL1203248L-HH | 48 | 36~54 | 0.40 | 19.2 | ||||||
 |  |
