KFL-100P

Category:Duct Fan
Clicks:
Release date:2015/03/25
More
Online Inquiry

Details

Description:

Model: KFL-100P

2 Speed control mixed flow duct fan

General Features

1. The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function

2. Using ABS blades ,design by hydromechanics to reach the optimal air and pressure

3. Two -speed motor, imported NMB ball bearing, it’s life expectancy up to 50,000 hours

4. IP44 Protection class, waterroof and dustproof more effective

5. Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design

6. Operating temperature range :-20°C~60°C

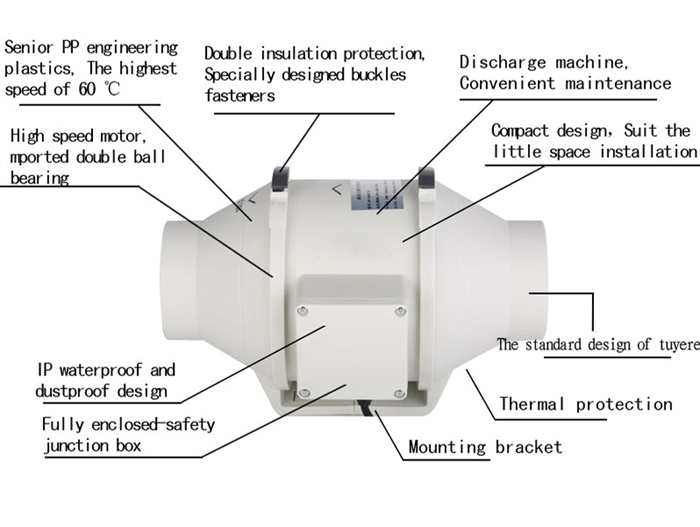

Products show :

product show 100.jpg

Performance Parameter:

Model	Gear	Voltage /Frequency	Current	Power	Speed	Weight	Air Flow	Air Pressure	Avg.dBA@3m
Model	Gear	Voltage /Frequency	（Amps）	（W）	（RPM）	（Kg）	(M³/H)	(Pa)	(db)
KFL-100(4")	H	230V/50Hz	0.12	26	2200	2	198	156	31
	L	230V/50Hz	0.11	23	1850		165	131	26
	H	115V/60Hz	0.26	30	2200		198	156	31
	L	115V/60Hz	0.24	28	1850		165	131	26

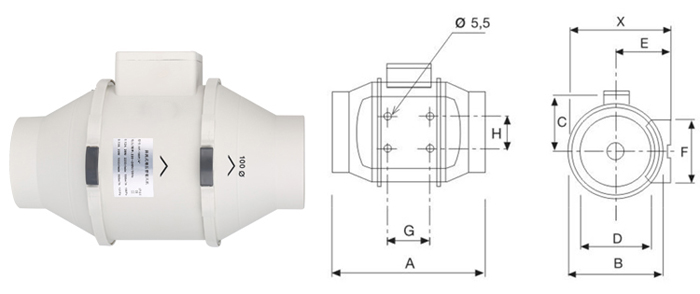

Dimensions mm :

dimensions mm 100.jpg

Model	X	A	øB	C	øD	E	F	G	H
KFL-100	188	303	176	115	97	100	90	80	60
KFL-125	188	258	176	115	123	100	90	80	60
KFL-150	212	320	200	127	147	112	130	80	60
KFL-200	232.5	302	217	141	197	124	140	100	94

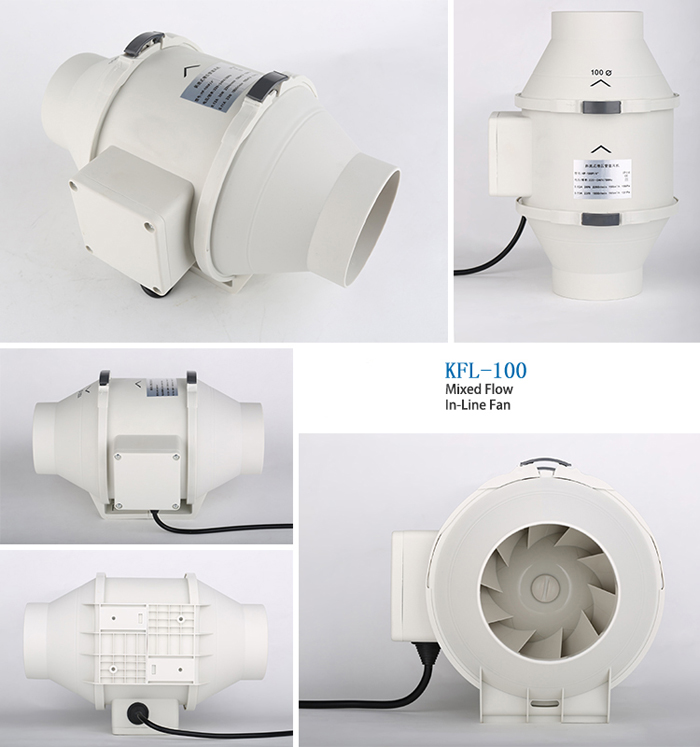

Product Details:

product details 100.jpg

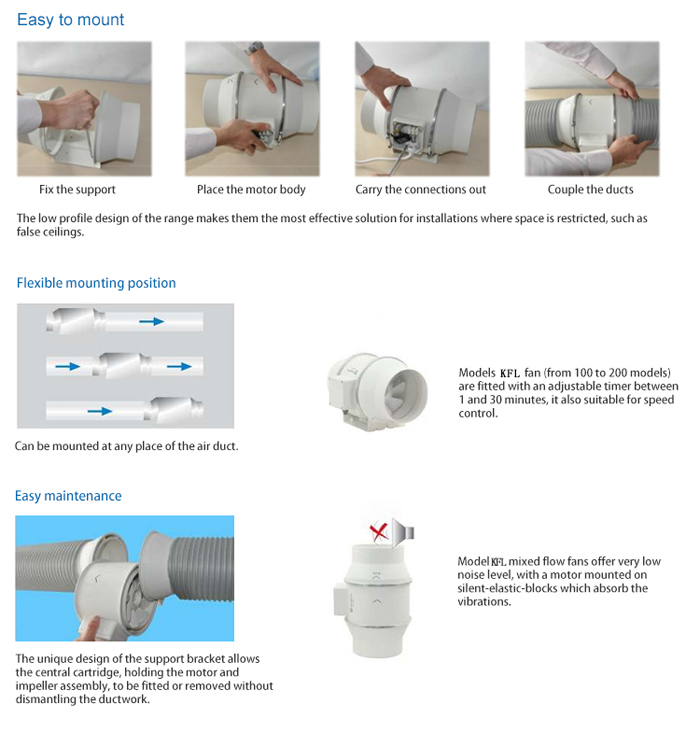

Fan Installation and Maintenance:

installation and maintenance.jpg

Application:

　　Mixed flow duct fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow with low noise, with a range of sizeds including 100,125,150 and 200mm. Mixed flow duct fan can be used with rigid and flexible air duct. This kind of fan is the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens, as well as ventilation for apartments, houses, shops, cafes, restaurants, sinemas etc.
