Description:
Model: KFL-125P
2 Speed control mixed flow duct fan
General Features
1. The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function
2. Using ABS blades ,design by hydromechanics to reach the optimal air and pressure
3. Two -speed motor, imported NMB ball bearing, it’s life expectancy up to 50,000 hours
4. IP44 Protection class, waterroof and dustproof more effective
5. Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design
6. Operating temperature range :-20°C~60°C

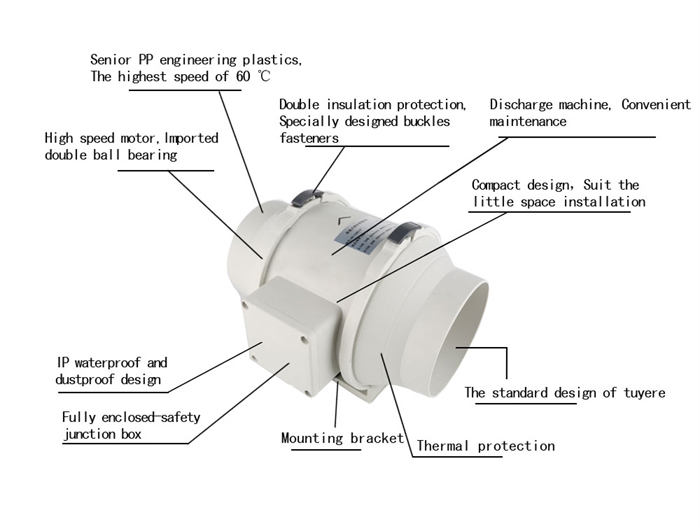

Product show:
Performance Parameter:
Model | Gear | Voltage /Frequency | Current | Power | Speed | Weight | Air Flow | Air Pressure | Avg.dBA@3m |
(Amps) | (W) | (RPM) | (Kg) | (M3/H) | (Pa) | (db) |
KFL-125(5") | H | 230V/50Hz | 0.14 | 33 | 2250 | 1.8 | 284 | 159 | 31 |
L | 0.13 | 28 | 1850 | 248 | 106 | 26 |
H | 115V/60Hz | 0.3 | 32 | 2250 | 284 | 159 | 31 |
L | 0.26 | 27 | 1850 | 248 | 106 | 26 |

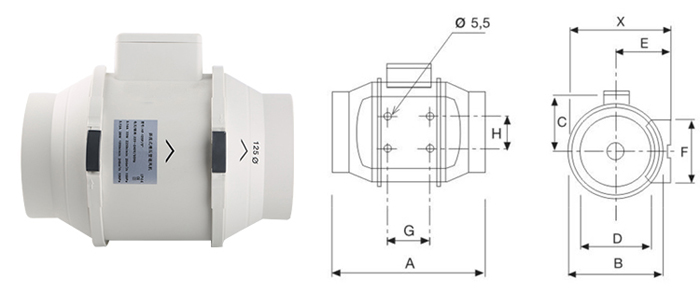

Dimensions mm :

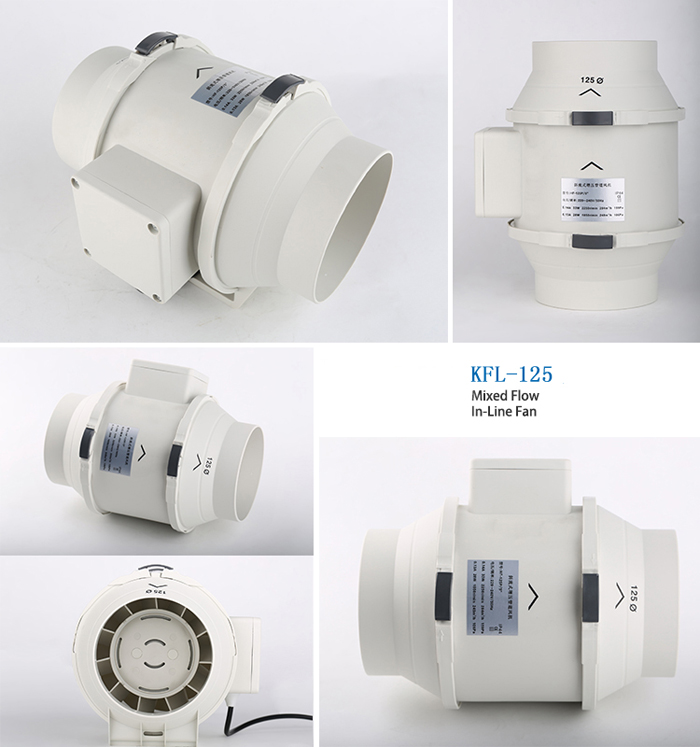

Product Details:

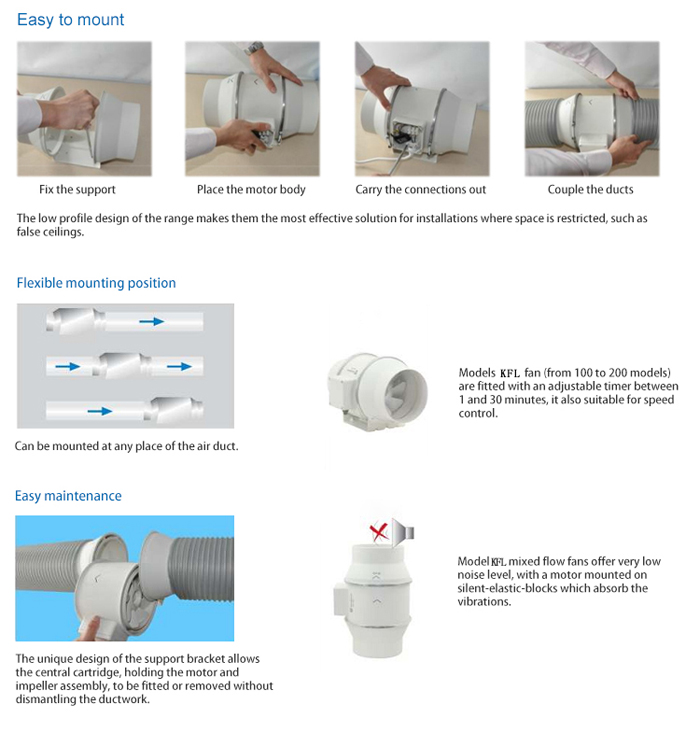

Fan Installation and Maintenance:
Application:
Mixed flow duct fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow with low noise, with a range of sizeds including 100,125,150 and 200mm. Mixed flow duct fan can be used with rigid and flexible air duct. This kind of fan is the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens, as well as ventilation for apartments, houses, shops, cafes, restaurants, sinemas etc.
