Model No：KFL7627

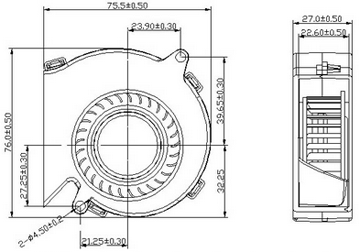

Measure：76*76*27 mm
Feature：
．Housing: enviromental protection and fireproof PBT（UL94V-0）.
．Impeller: enviromental protection and fireproof PBT（UL94V-0）.
．Enameled copper wire: BA class insulation,withstand high temperature 155℃.
．Bearing: high-precision,long-life and low noise ball bearing.
．Motor: Impedance protection.
Operating temperature :
ball bearing:-30℃ to + 75℃ 30%-85% RH
sleeve bearing:-10℃ to + 70℃ 30%-85% RH
Specifications :
Model No. | Voltage | Operating Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||
V | V | A | W | RPM | M³/Min | CFM | mmH2O | inH2O | dB-A | |
KFL762712L | 12 | 6.8~13.5 | 0.13 | 0.56 | 3000 | 0.29 | 10.23 | 6.25 | 0.246 | 36 |
KFL762724L | 24 | 18~26.5 | 0.08 | 1.92 | ||||||
KFL762712M | 12 | 6.8~13.5 | 0.22 | 2.64 | 3500 | 0.32 | 11.35 | 8.60 | 0.339 | 42 |
KFL762724M | 24 | 18~26.5 | 0.12 | 2.88 | ||||||
KFL762712H | 12 | 6.8~13.5 | 0.28 | 3.36 | 4000 | 0.35 | 12.48 | 10.70 | 0.421 | 46 |
KFL762724H | 24 | 18~26.5 | 0.15 | 3.60 | ||||||
KFL762712H-HH | 12 | 6.8~13.5 | 0.36 | 4.32 | 4500 | 0.41 | 14.63 | 13.43 | 0.529 | 48 |
KFL762724H-HH | 24 | 18~26.5 | 0.21 | 5.04 | ||||||
 |  |
